Powder Metallurgy HSS ASP 2078
ASP2060 is a high alloyed grade for applications needing high hardness, high hot hardness and wear resistance. Sulphur addition gives it an improved machine-bility.
Chemical composition: C-2.3, Cr-4.2, Mo-7.0, W-6.5, Co-10.5, V-6.5, S-0.23
Standards: Europe: PMHS 6-7-6-10, Germany: 1.3241
Application of ASP 2060: hobs, shaper cutters, milling cutters
the steel grade is a perfect substrate material for PVD coating. If nitriding is requested, a small diffusion zone is recommended but avoid compound and oxidized layers.
相關(guān)文章
-
Solid Gear Hob with Standard Dimensions

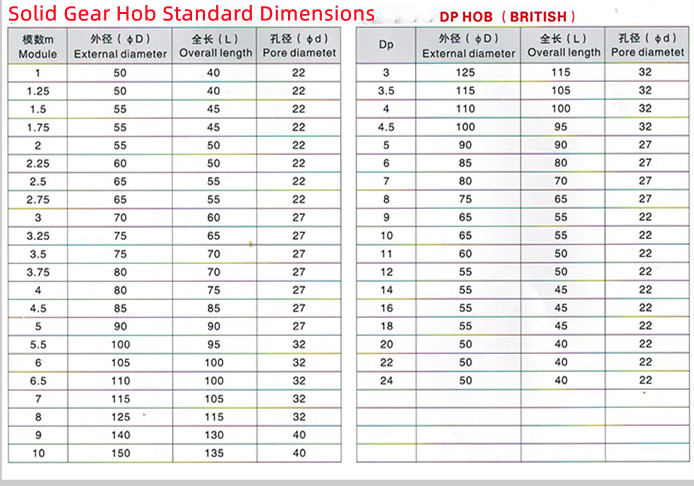

Solid Gear Hob with Standard Dimensionsthe following table shows that standard hob dimensions suited... - PA20° Pre-shaving Gear Hobber with Module m2.5
